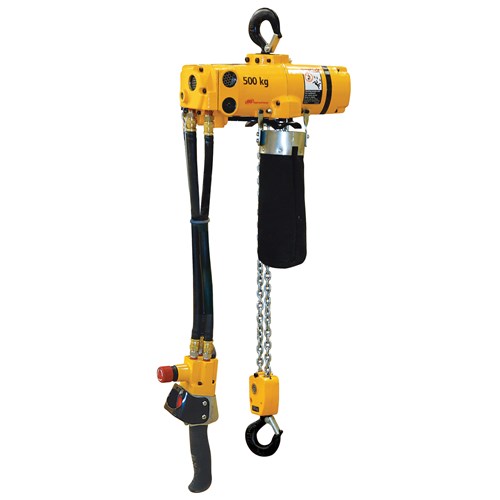

Ingersoll Rand CL500K-2C14-C8: AIR HOIST 500KG, 14FT LIFT, 6FT PENDENT CONTROL

500KG AIR CHAIN HOIST (CL500K-2C14-C8)

Share:

Download Brochure Download Manual Download Parts Breakdown
Preorder (ETA 8-12 weeks)
$6270.00 inc GST
Afterpay Logo
Unavailable for this order
Increase value Decrease value
Specifications
Type Disc Brake
Type Link Chain
Material Aluminium Housing
Capacity 500kg
Size 4mm x 12mm Chain
Air Consumption (at load) 32cfm
Noise Level 75dBA
  • Description
  • Features
  • Weight
  • Shipping & Returns
Designed for production applications and loads up to 1100 lbs, the CLK-Series is the latest addition to Ingersoll Rand's line of air chain hoists. Exceptional durability with an ASME HST-5 rating of A5 (FEM/ISO mechanism classification of 1Am/M4) the CLK Series hoist are duty-rated to operate 800 full-load hours between overhauls. Learn how to choose the appropriate CLK Hoist.
  • Meets ASME HST-5 Specifications and OSHA requirements
  • Rugged, lightweight and compact design
  • Disc brake is non-asbestos and spring engaged with air release
  • Internal muffler reduces sound levels to a best-in-the-industry 75 dBA
  • High-strength aluminum housing for maximum portability and weather resistance. Strong yet lightweight with a durable powdercoated finish.
  • Upper and lower limit stops prevent dangerous over-travel of the hook
  • 100% duty cycle multi-vane (6) air motor offers a high-torque and low-maintenance design. Air porting under the vanes creates smooth operation, positive starting, and long life.
  • Bottom latch-type swivel hooks meet OSHA requirements and are supported by anti-friction needle type thrust bearings.
  • Ergonomic pendent handle is rugged and durable. Guard covers both levers and can be used with or without gloves.
Approx. Product Weight: 17.24kg
Approx. Shipping Weight: 20.03kg
